120W Desttop Switching Adapter Power

Place of Origin : Guangdong, China (Mainland)

Certification : UL,CCC,GS,TUV,C-Tick

Output Type : DC

Usage : Laptop

Connection : Desktop

MOQ : 1000 Piece/Pieces

Payment Terms : T/T

Supply Ability : 300000 Piece/Pieces per Day

FOB : Shenzhen HK

Model Number : KSAFN3000400T1M3

Price : Negotiable

Packaging Details : PE bag+ white box

Delivery Time : 35days

Contact Now

120W Desttop Switching Adapter Power

Key Features of KSAFN3000400T1M3

●Light, extra slim, sleek, compact design

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

Key Applications of KSAFN3000400T1M3

It’s suitable for an extremely wide range of applications, including:

●Printer

●Massage armchair

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:90 to 264 VAC

●Frequency : 47-50/60-63hz

●Input current :1.2A(Max)

●Inrush current :100AMax 120VAC at max Load

100AMax 240VAC at max Load

●Leakage current :0.25 mA Max

Output

●Over voltage protection

●Over current protection

at 300% lo and.automatic-recovery

●Over temperature protection

●Electronic short circuit protection

●Average efficiency 80% Measured at 25℃

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●EN 60335

Certificates and approvals

●CE

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS Test:EN 61000-4-3

●EFT Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS Test:EN 61000-4-6

●DIP Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 173*64*42

120W Desttop Switching Adapter Power

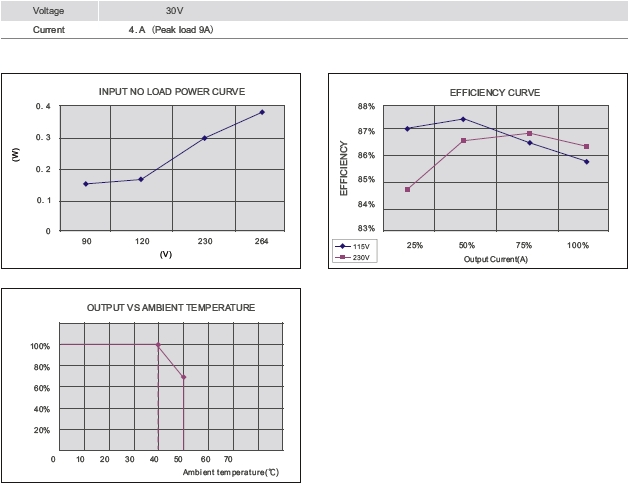

Product tables for 120W

120W Desttop Switching Adapter Power

Packing & shipping

120W Desttop Switching Adapter Power

Down Load

Click Down
